双通道双向直流电机驱动 SC8927
我要咨询产品
产品简介
The SC8927 provides an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device has a two-channel H-bridge driver, and drives two DC motors, as well as other devices like shutter or iris on cameras. An internal charge pump generates gate drive voltages.The SC8927 supplies up to 1.0-A of output current.The operates on a motor power supply voltage from 2.0 V to 5.5 V.The SC8927 device has a PWM (IN/IN) input interface. Internal shutdown functions are provided for overtemperature.The SC8927 is packaged in a 10-pin DFN package or a 10-pin MSOP.
产品特点
l H-Bridge Motor Driver
Ø Drives 2-DC Motors or Other Loads
Ø Low saturation voltage: 0.50V typ. At 400mA
l Low operating Current
l Low voltage operation:
Ø VDD min =2.0V
l Low input current
l High output sinking and driving capability
l Small Package and Footprint
Ø DFN-10(With Thermal Pad)
Ø MSOP-10
l Protection Features
Ø Thermal Shutdown(TSD)

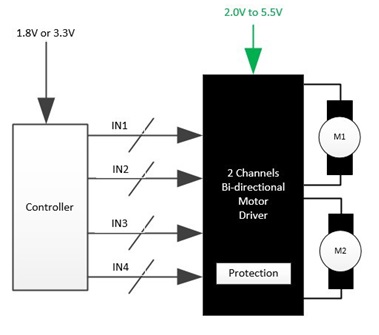

应用电路图
规格书内容
