28V异步升压芯片 SD4401
我要咨询产品
产品简介
The SD4401 is a constant frequency, 6-pin SOT23 current mode step-up converter intended for small, low power applications. The SD4401 switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal soft-start results in small inrush current and extends battery life. The SD4401 features automatic shifting to pulse frequency modulation mode at light loads. The SD4401 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The SD4401 is available in a small 6-pin SOT-23 package.
产品特点
l Up to 98% Integrated 80mΩ MOSFET
l 2V to 24V Input Voltage
l 1.2MHz Fixed Switching Frequency
l Internal 4A Switch Current Limit
l Adjustable Output Voltage
l Internal Compensation
l Up to 28V Output Voltage
l Automatic Pulse Frequency
Modulation Mode at Light Loads
l up to 97% Efficiency
l Available in a 6-Pin SOT23-6 package

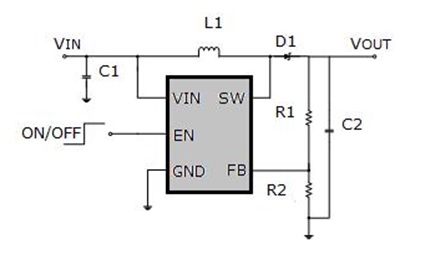

应用电路图
规格书内容
